Executive Summary

• The primary mechanism for final payment status should be webhooks or passive notifications from the Payment Gateway (PG) — this is recommended for reliability.
• Requery is a backup method — use it only when a transaction remains in a pending or unknown state after a reasonable waiting period.
• Bulk requery cadence: Perform once every 30 minutes, and only for transactions marked as pending or unknown.
• Always respect API-specific limits, performance classifications, and data windows to avoid throttling or service blocks.
• Excessive or rapid API calls may be blocked without prior notice.
• No results will be returned beyond the data range supported by each API.

General Principle

The Status Inquiry API serves as a backup method to confirm payment or refund outcomes. It should not be used as the primary mechanism for tracking transactions.

Merchants must first rely on Fiuu’s push notification endpoints (via 3-endpoint integration) to receive real-time transaction updates.

Usage Restrictions

• Do NOT trigger a status inquiry immediately after submitting a payment or refund request.
• Do NOT continue querying once the transaction status has been successfully retrieved.
• AVOID looping inquiry calls at short intervals — this may result in rate-limit blocking.
• Excessive API calls from the same source IP may be blocked with an HTTP 429 error for 60 minutes, without prior notice.

Best Practices

✅ Leverage Push Notifications

• Always integrate all three notification endpoints to receive automatic status updates.
• Use the status inquiry API only if a notification is not received within a reasonable timeframe.

⏳ Backoff Strategy

• Apply a progressive retry interval (e.g., retry after 5 minutes → 15 minutes → 30 minutes).
• For transactions with a pending or unknown status, retry no more than once every 30 minutes.

🛑 Stop Once Confirmed

• Once a final status is obtained (Success, Failed, or Refunded), stop further inquiries.

🔍 Use Appropriate API Type

• Select the correct inquiry API based on your business needs (e.g., by Transaction ID, Order ID, or Batch).
• Respect the API’s rate limits and data range (e.g., 30 days, 180 days).

Consequences of Abuse

• HTTP 429 – Too Many Requests: This error is returned when the rate limit is exceeded.
• Automatic IP Blocking: The offending IP address will be blocked for 60 minutes without prior notice.
• Escalated Restrictions: Repeated abuse may lead to longer-term blocks, throttling, or permanent access restrictions.

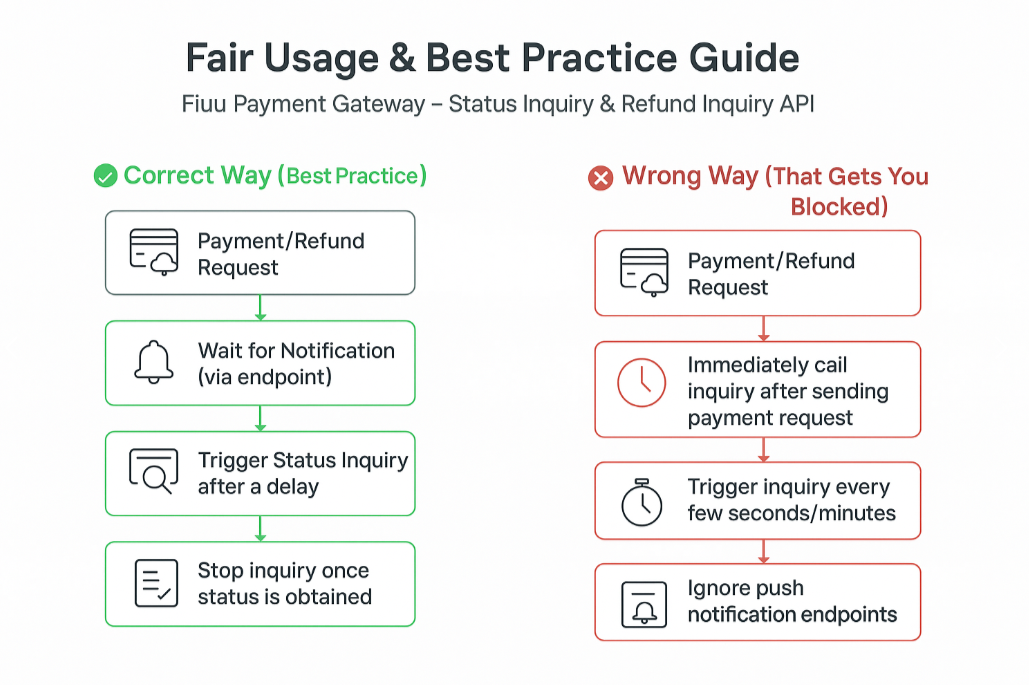

📊 Visualized Guide (Do’s & Don’ts)

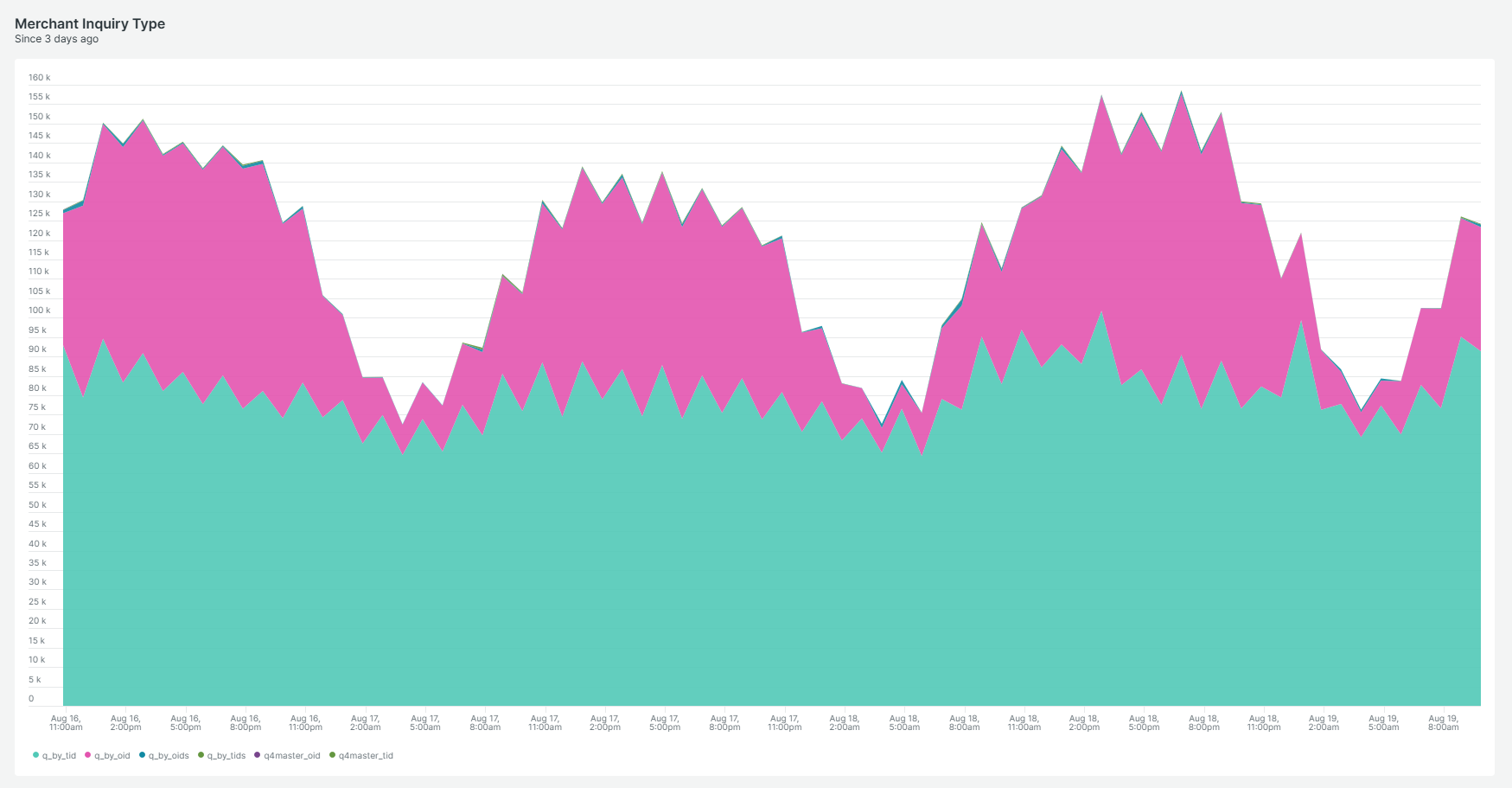

Below is the actual usage and traffic pattern on Fiuu's payment status inquiry APIs:
Dominated by q_by_tid and q_by_oid with peak hours from 11am-11pm (UTC+8)

✅ Correct Way (Best Practice)

1. Initiate Payment/Refund Request → Wait for notification via endpoint.
2. If no notification is received, trigger a status inquiry after a reasonable delay.
3. Apply a progressive retry strategy (max once every 2-5 mins)
4. Stop inquiries once a final status is obtained (Success, Failed, or Refunded).
5. Always trigger status inquery request from merchant server with static IP address.

❌ Wrong Way (That Gets You Blocked)

1. Immediately calling inquiry after sending a payment/refund request.
2. Triggering inquiry repeatedly every few seconds or minutes.
3. Continuing to query even after the final status is confirmed.
4. Ignoring push notification endpoints, relying solely on inquiry calls.
5. Distributed inquery by triggering the request on client service/mobile app from various IP address.

Fair Use Principles (Merchant Pledge)

1. Webhook-first: Treat webhook/PG notifications as the source of truth. Use requery only as a fallback.
2. Purpose-bound calls: Requery only to resolve pending/unknown states. Do not poll completed/failed/refunded transactions repeatedly.
3. Respect limits: Never exceed rate limits or maximum results per call. Apply client-side throttling.
4. Honor data windows: Choose an API whose data range actually covers the transaction’s age.
5. Bulk cadence: If performing bulk checks, run them once every 30 minutes and only for unresolved items.
6. Backoff & jitter: Use exponential backoff and randomized jitter to prevent thundering herd issues.
7. Stop early: Cease polling immediately once a final state (Success / Fail / Void / Refunded) is confirmed.
8. Be predictable: Avoid burst traffic; distribute calls evenly within a time window.
9. Secure & compliant: Protect IDs, authenticate requests, log minimal PII, and rotate credentials regularly.
10. Operational transparency: Monitor, alert, and reduce traffic promptly if approaching throttling or encountering HTTP 429/5xx errors.

Best-Practice Playbooks

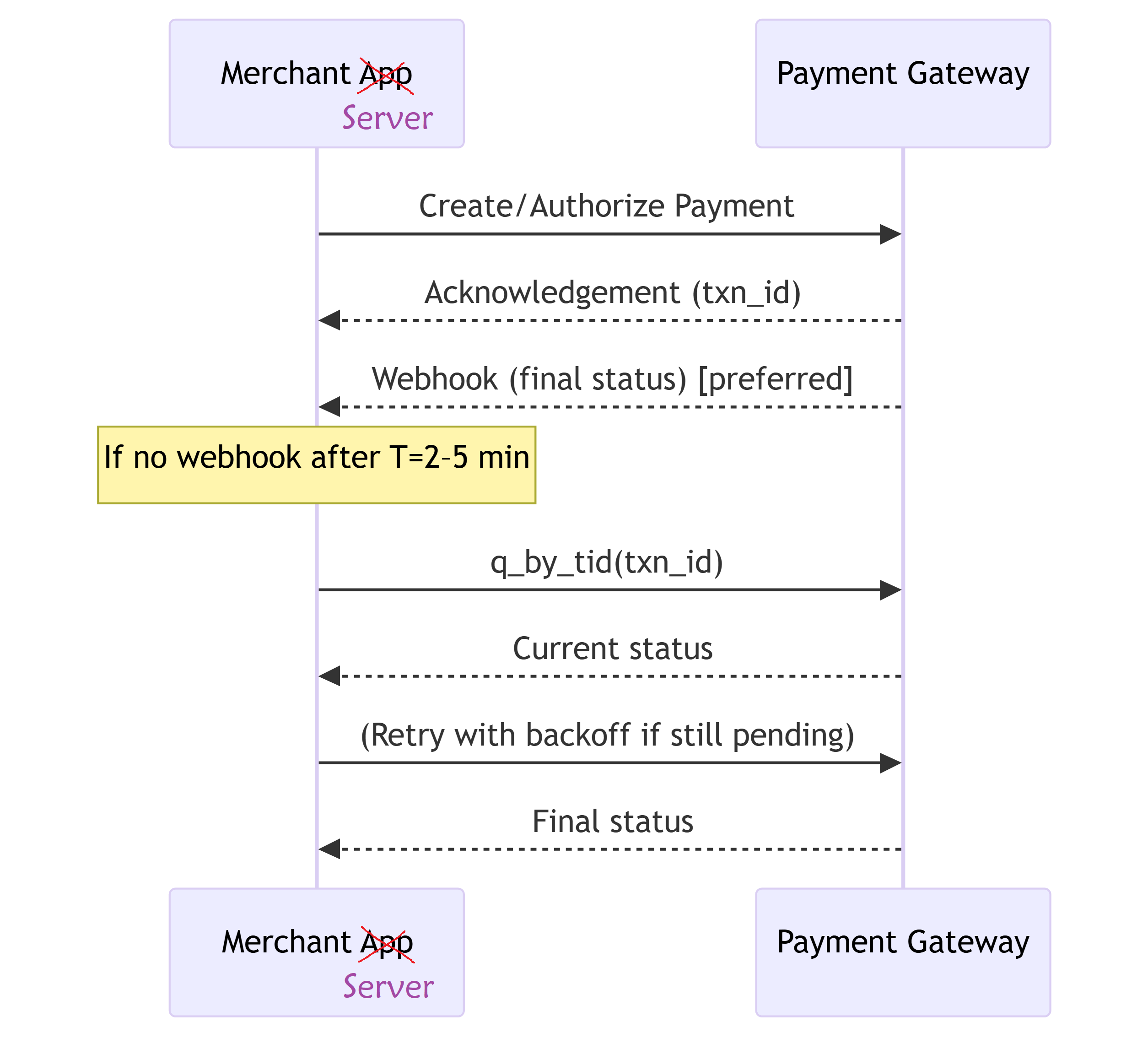

⏱ Real-Time Transactions (single payment)

• T0: Create/authorize payment and listen for webhook.
• If no webhook is received after N minutes (e.g., 2–5 minutes):
  • Use q_by_tid (fast, 30 RPS, 180D) for the single transaction.
  • Retry using exponential backoff (e.g., 2 min → 5 min → 15 min), and cap the total retry duration (e.g., 60–90 minutes).
  • Stop as soon as a final state is received (via webhook or requery).

📦 Bulk Recovery/Housekeeping

• Every 30 minutes (via cron/scheduler), fetch transactions still in pending/unknown status:
  • Prefer q_by_tids (10 per call, 10 RPS, 30D) for transaction ID lists.
  • If only order IDs are available, use:
    • q_by_oids (slow, 10 per call, 5 RPS, 24H), or
    • q_oid_batch to fetch the latest 10 matches by order ID (also slow, 5 RPS, 24H).
  • For cross-brand/tenant operations, narrow by master merchant using:
    • qMaster_tid (1 transaction, 10 RPS, 30D), or
    • qMaster_oid (1 transaction, 5 RPS, 24H).
• Spread calls evenly across the 30-minute window to avoid traffic spikes.
• Automatically exclude transactions outside each API’s data range.

❌ Error Handling & Retries

• Handle HTTP 429 (Too Many Requests) by backing off (e.g., 1–5 minutes) and reducing concurrency.
• For 5xx errors, retry using capped exponential backoff and implement a circuit breaker to pause for a cooling period.
• Maintain idempotent job runs; deduplicate work by transaction or order ID.

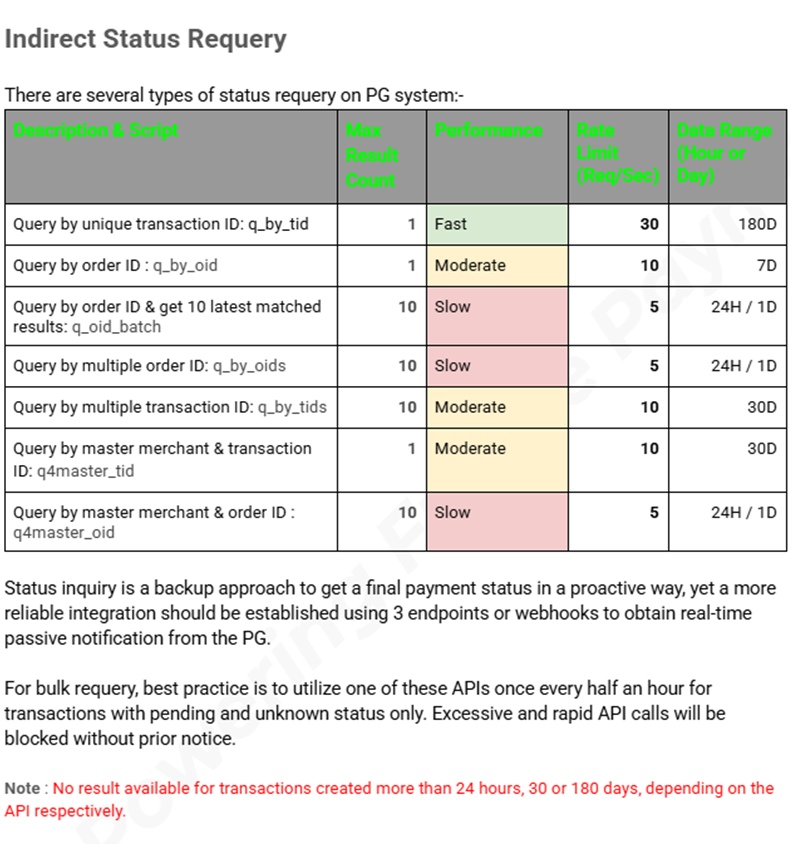

📄 Choosing the Right API (cheat sheet)

• Know a transaction ID and need a single status → q_by_tid (fast).
• Know many transaction IDs → q_by_tids (batch up to 10).
• Only know a single order ID → q_by_oid.
• Need latest matches for an order → q_oid_batch (latest 10).
• Have many order IDs → q_by_oids (batch up to 10).
• Multi-tenant/master merchant scoping → qMaster_tid / qMaster_oid.

Traffic Management & Guardrails

• Client-side rate limiter: Respect hard caps per API

  (e.g., q_oid_batch ≤ 5 RPS, q_by_tid ≤ 30 RPS).

• Concurrency caps:

  • Moderate APIs → up to 10 workers
  • Slow APIs → 3–5 workers

• Exponential backoff with jitter:

  • Base: 30s
  • Factor: 2
  • Jitter: ±20%

• Circuit breaker:

  • Opens after N consecutive failures or sustained 429/5xx errors
  • Cooling period: 5–10 minutes

• Work deduplication:

  • Maintain a queue keyed by transaction/order ID
  • Ignore duplicates in-flight

• Stop conditions:

  • Stop immediately on final status
  • Auto-exclude records outside the data range

Monitoring, Logging, and Alerts

• Metrics:
  • Requests/second per API
  • Success rate
  • HTTP 429/5xx counts
  • Average latency
  • Retries
  • Backlog size
• SLIs/SLOs:
  • Timeliness to final status (e.g., P95 latency)
  • Webhook success rate
  • Requery savings (how often requery resolved the status)
• Alerts:
  • Spike in HTTP 429 errors > threshold (e.g., >1% over 5 minutes)
  • Spike in 5xx errors or latency > 2× baseline
  • Backlog age exceeds 45 minutes
• Audit logs:
  • Log minimal fields: txn_id, order_id, API used, timestamp, attempt number, and result

Security & Compliance

• Protect identifiers (txn_id, order_id) both in transit and at rest
• Apply the principle of least privilege for API credentials; rotate them regularly
• Minimize PII: Do not log sensitive cardholder data; align with PCI DSS where applicable
• Webhooks:
  • Verify signatures
  • Use HTTPS
  • Implement replay protection
  • Ensure idempotency (DO NOT treat multiple notification or callback as double or triple payment)

Do’s & Don’ts

Reference Scheduler Config

scheduler:
  bulk_requery:
    interval: "PT30M"          # every 30 minutes
    include_states: ["PENDING", "UNKNOWN"]
  api_choice:
    prefer: "q_by_tids"
    fallback_for_order_id: "q_by_oids"
  rate_limits:
    q_by_tid: { rps: 25 } # below hard cap 30
    q_by_tids: { rps: 8 } # below hard cap 10
    q_by_oid: { rps: 8 } # below hard cap 10
    q_by_oids: { rps: 4 } # below hard cap 5
    q_old_batch: { rps: 4 } # below hard cap 5
data_windows:
  q_by_tid: "P180D"
  q_by_tids: "P30D"
  q_by_oid: "P7D"
  q_by_oids: "P1D"
  q_old_batch: "P1D"
retries:
  max_attempts: 5
  backoff: { baseSeconds: 30, factor: 2.0, jitter: 0.2 }
circuit_breaker:
  failureRateThreshold: 0.2
  slidingWindow: "PT5H"
  coolOff: "PT10M"
